Mode Rapid Implant
Higher Primary Stability

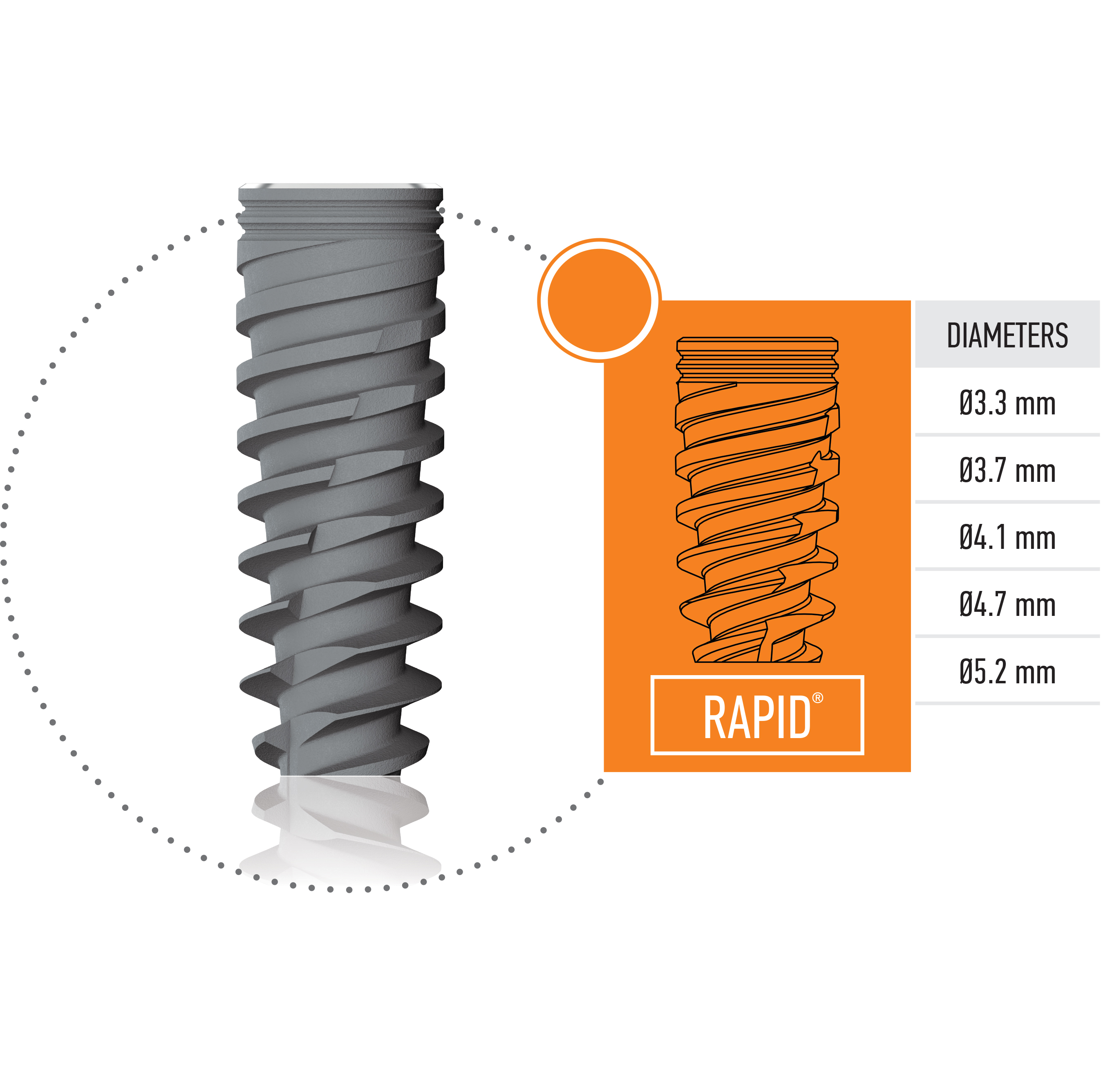

MODE RAPID
  • Back Tapered Coronal Design & Micro Threads
  • Tapered Implant Body
  • Excellent Primary Stability in Soft Bone
  • Flexible Surgical Protocol
  • One Stage or Two Stage Surgical Procedures
  • Immediate & Early & Conventional Loading
  • Octagon Connection

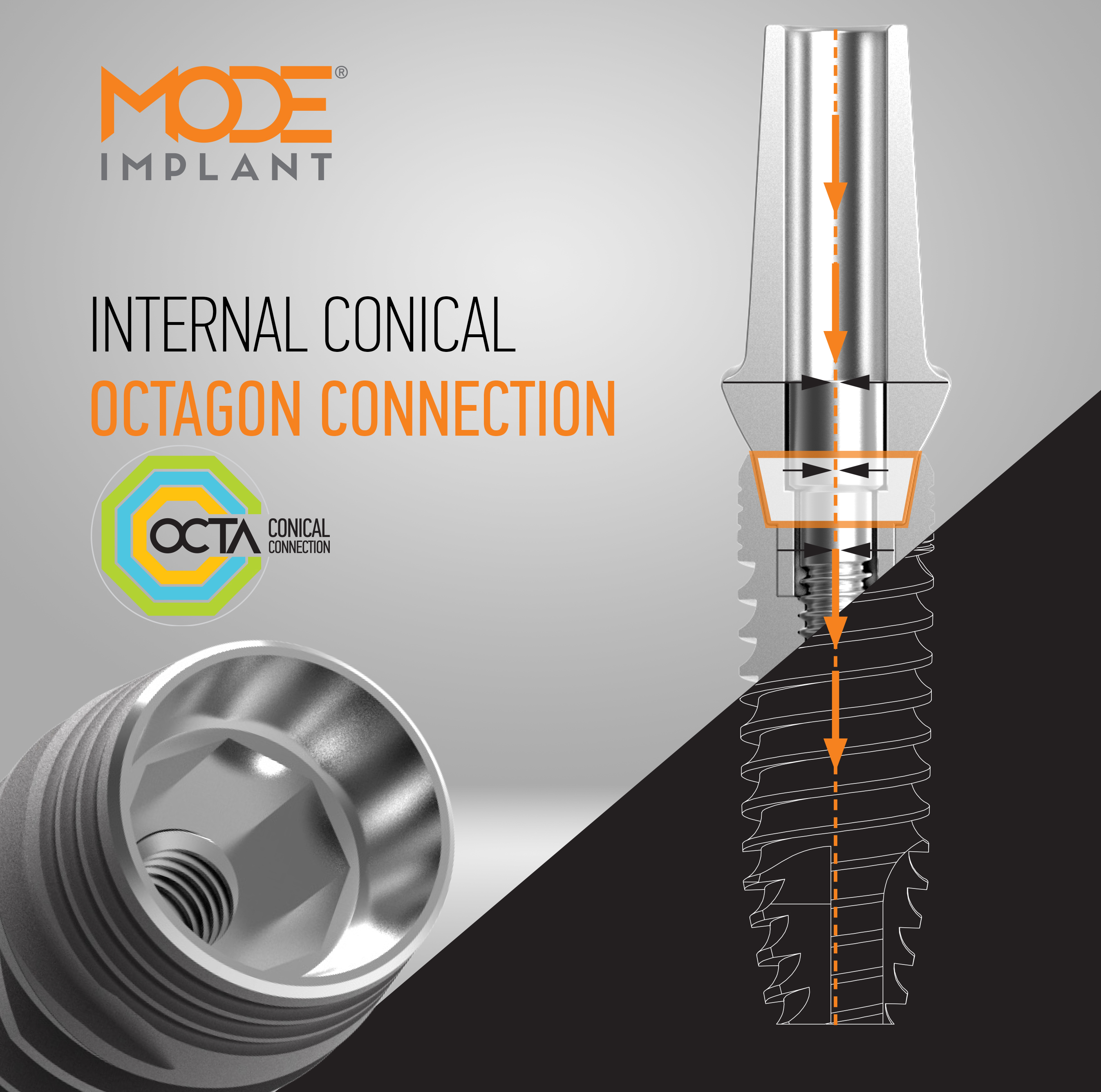

Internal Conical <br><span>Octagon Connection</span>

Internal Conical
Octagon Connection

Internal Connection Conical Implant-Abutment Interface and OCTAFIT Interlocking

OctaFit® connection provides easy sitting and confidence for positioning abutments

  • Secure Prosthetic Positioning
  • Platform Switching
  • High Esthetics
  • Conical Connection & Octagonal Interlocking
  • High Mechanical Strength
  • Tight Sealing

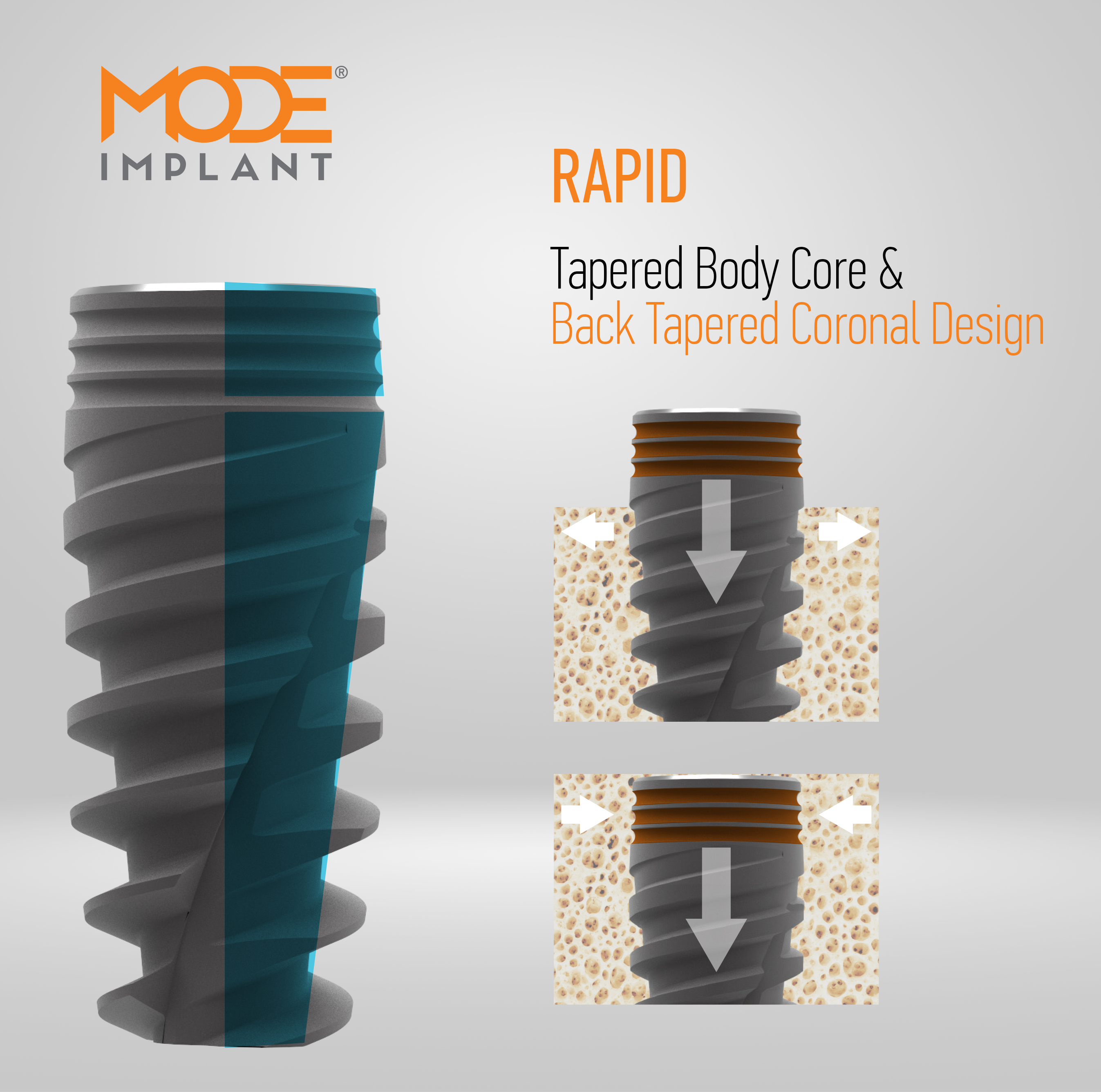

Tapered Body Core & <br><span>Back Tapered Coronal Design</span>

Tapered Body Core &
Back Tapered Coronal Design

Allows for maximum alveolar bone volume around implant for improved soft tissue support

  • Decreased Stress on Cortical Bone
  • Maximum Bone Volume
  • Maximum Soft Tissue Volume
  • Greater surface area
  • High primary stability
  • Inital Placement Control
  • Easy Insertion

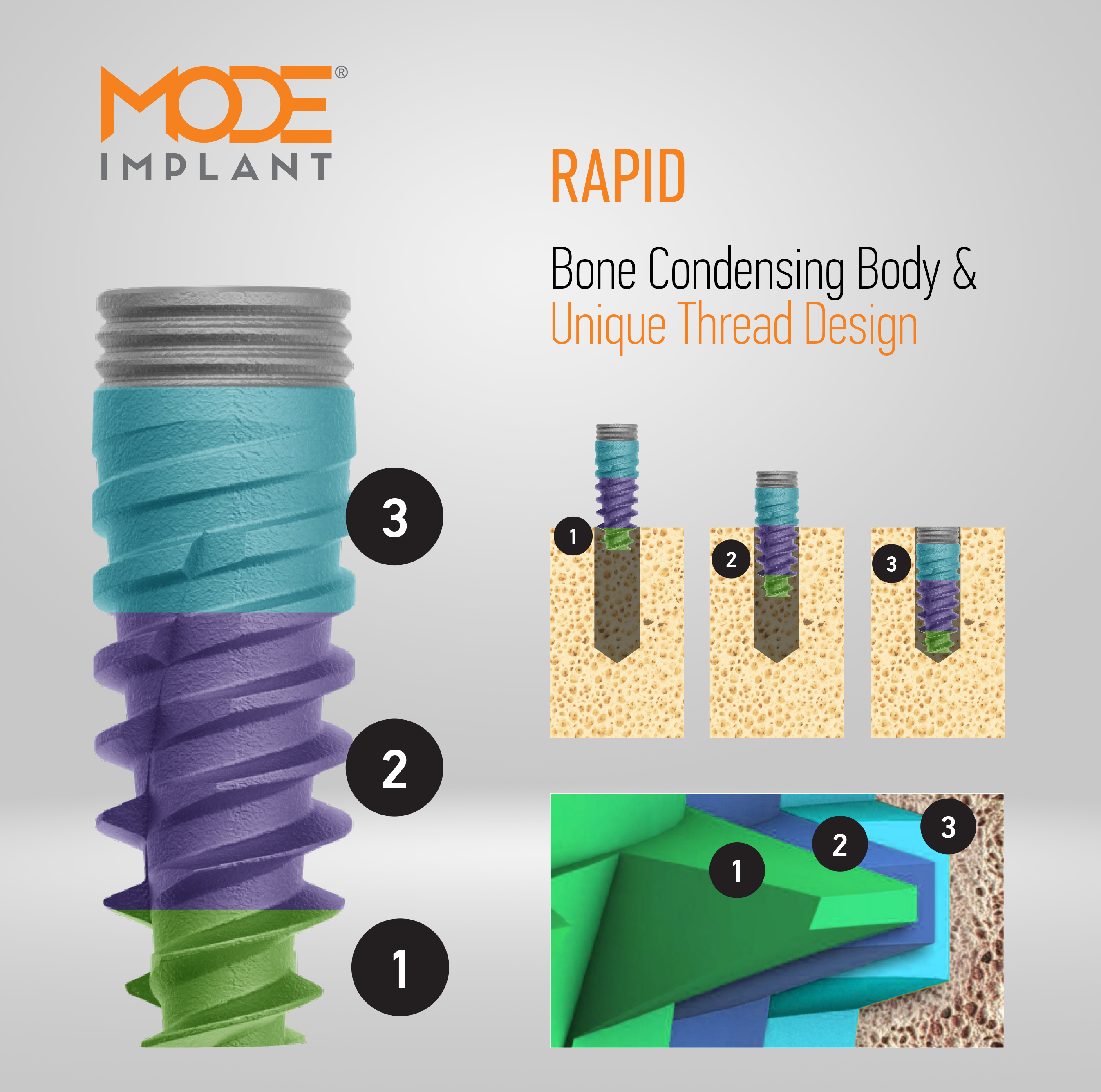

Bone Condensing Body & <br><span>Unique Thread Design</span>

Bone Condensing Body &
Unique Thread Design

Variable Thread Design From Coronal to Apical Part  Allows Gradual Bone Condense

  • Provides Excellent Primary Stability even in Soft Bone
  • Provides Narrow Ridge Expansion
  • Compact the Bone Outward

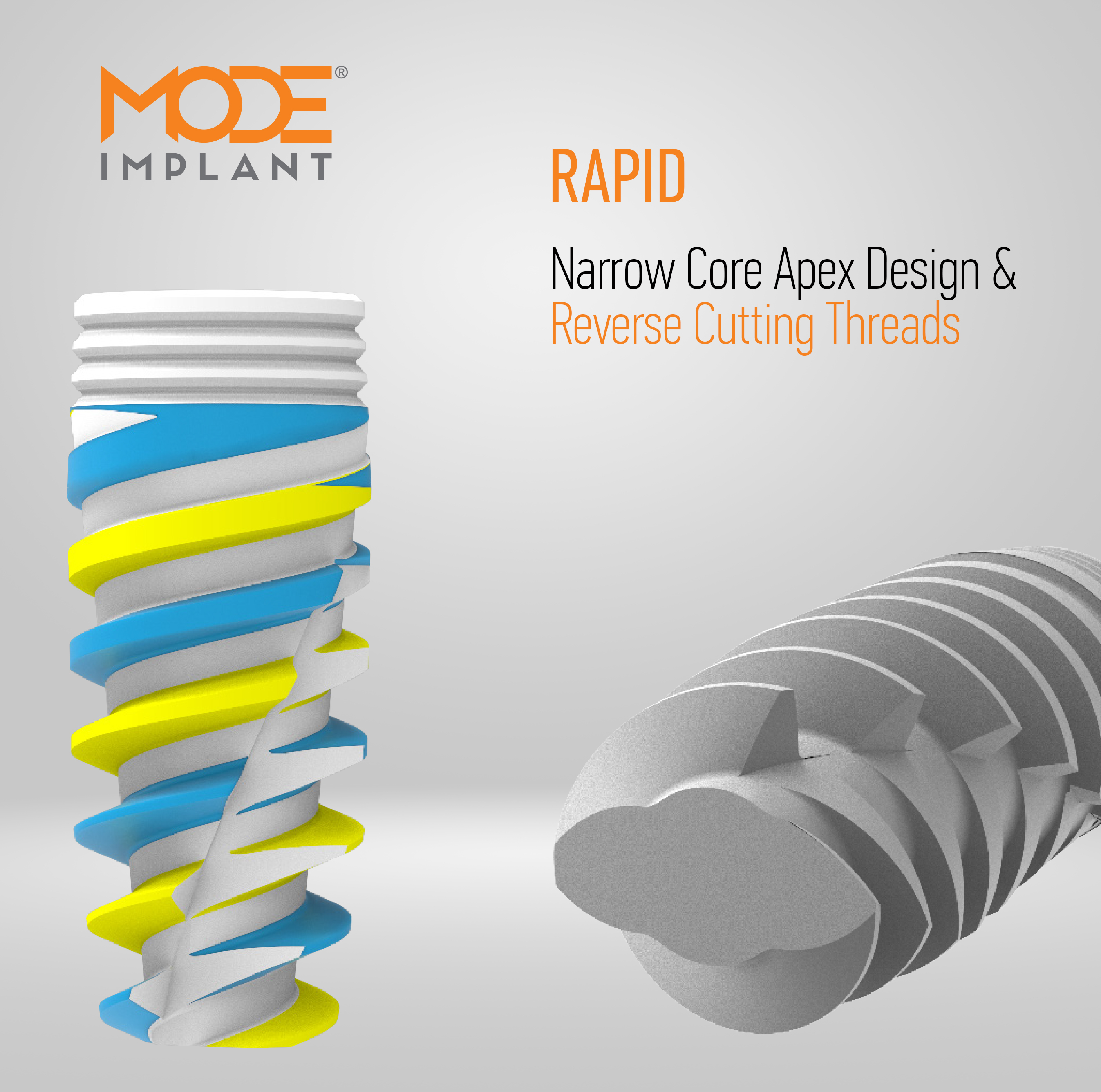

Narrow Core Apex Design &<br><span> Reverse Cutting Threads</span>

Narrow Core Apex Design &
Reverse Cutting Threads

  • Self Drilling & Self Tapping
  • Easy insertion
  • Minimum Osteotomy
  • High stability in apical region
  • Allows Implant to condense bone
  • Two Long Spiral Flutes
  • Counter Clockwise Cutting Effect
  • Self Drilling & Redirecting Ability During Insertion
  • Enables the Implant to penetrate Small Diameter Prepared Sites
  • Double Threads with 2,4mm steps provides faster insertion

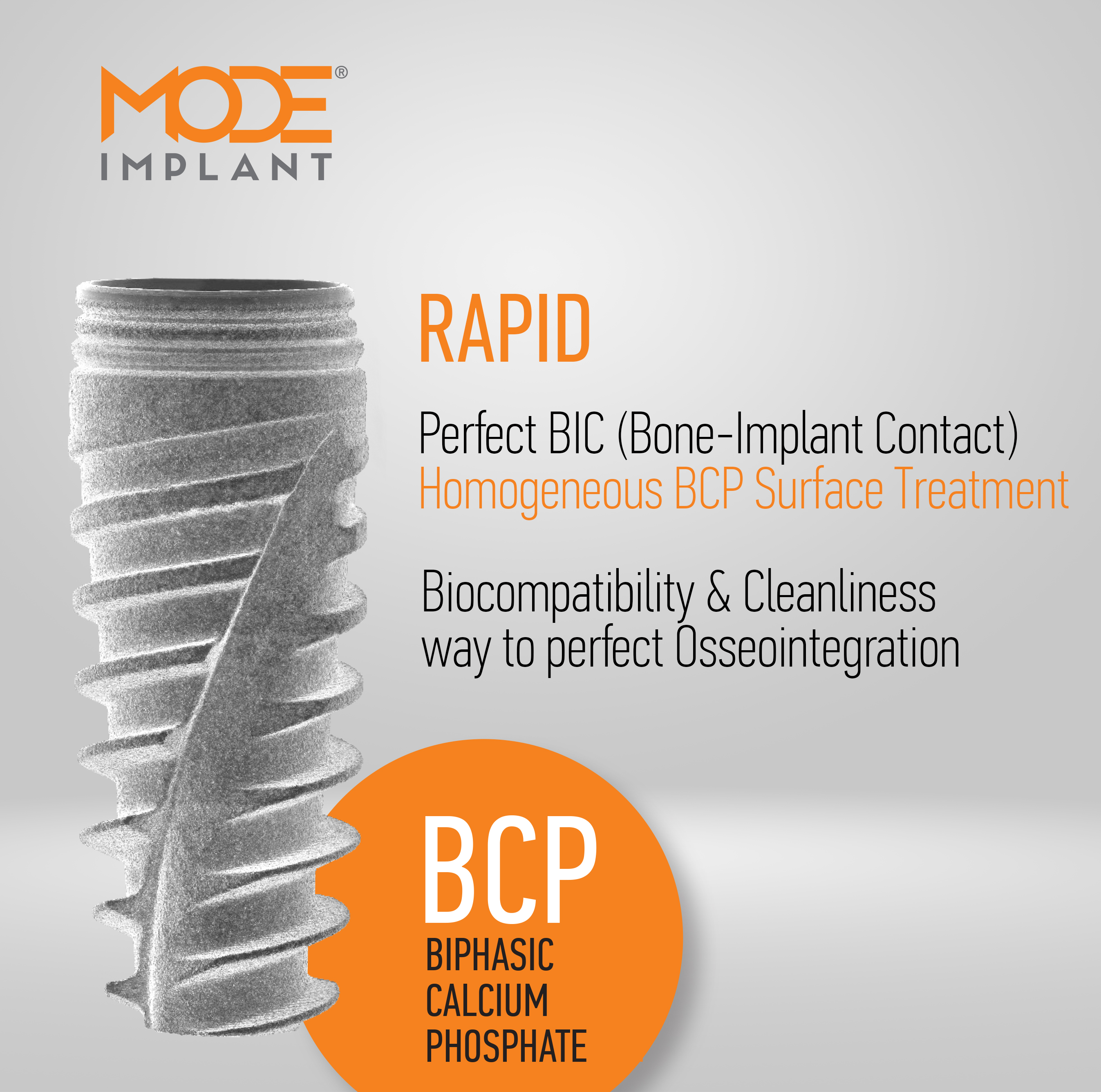

HA Hydroxyapatite <br><span>Osteoblastic BCP<br> Surface Morphology</span>

HA Hydroxyapatite
Osteoblastic BCP
Surface Morphology

Perfect HA Osteoblastic homogeneous surface morphology BIC Bone-Implant Contact provides perfect combination with human body and 100% biocompitable BCP Biphasic Calcium Phosphate under favour of Optimum Osseointegration.

Phase Composition: HA/B-TCP BIPHASIC CALCIUM PHOSPHATE

  • Hydroxylapatite..........................................>65%,
  • b-TCP, a-TCP and TTCP phase........<35%
  • Other Ca-P phases.................................<5%
