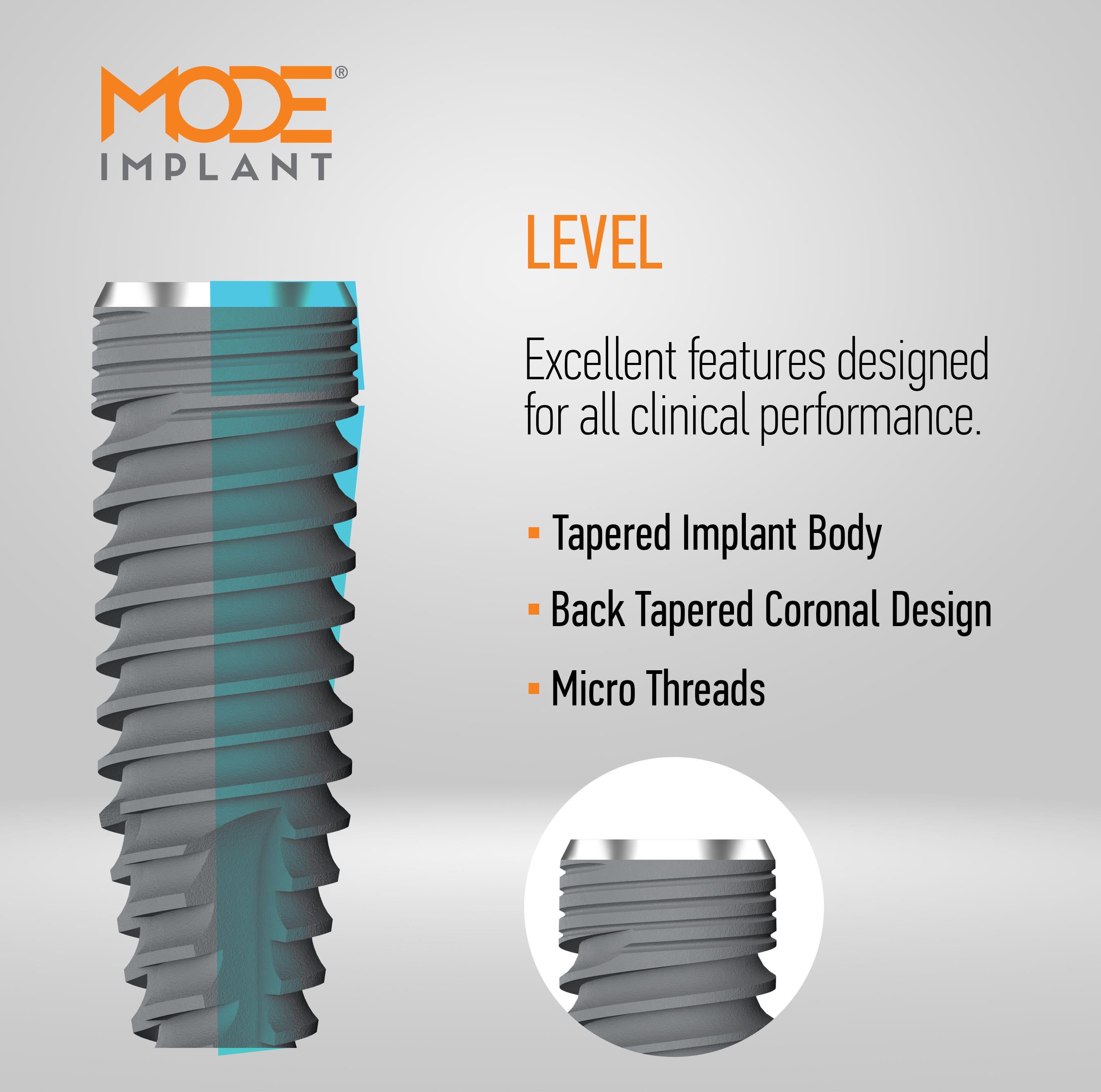

Mode Level Implant
Innovative & Advanced Design for All Clinical Indications


MODE LEVEL
  • Back Tapered Coronal Design & Micro Threads
  • Reverse Buttress Double Thread
  • Apically Tapered Implant Body
  • Excellent Primary Stability and Excellent Control During Placement for All Bone Types
  • Self Tapping
  • One Stage or Two Stage Surgical Procedures
  • Immediate & Early & Conventional Loading
  • Octagon Connection


Internal Conical<br> <span> Octagon Connection</span>

Internal Conical
Octagon Connection

Internal Connection Conical Implant-Abutment Interface and OCTAFIT Interlocking

OctaFit® connection provides easy sitting and confidence for positioning abutments

  • Secure Prosthetic Positioning
  • Platform Switching
  • High Esthetics
  • Conical Connection & Octagonal Interlocking
  • High Mechanical Strength
  • Tight Sealing

Back Tapered Coronal Design & <span>Micro Threads</span>

Back Tapered Coronal Design & Micro Threads

Back Tapered Design allows maximized crestal bone preservation and microgap control. Allows for maximum alveolar bone volume around implant for improved soft tissue support

  • Great BIC (Bone Implant Contact) in the cortical part
  • Large surface area
  • Improved stress distribution
  • Reduces pressure on cortical bone
  • Long-term esthetics

Tapered Implant Body

Tapered Implant Body

Reverse Buttress Thread

  • Smooth and gentle bone penetration
  • High primary stability
  • Double thread design with 1.6 mm step
  • Variable thread design
  • Easy and smooth insertion
  • Excellent bone grip
  • Moderate self-drilling capability

Seld Drilling & Self Tapping<br><span>High Primary Stability<br> Apical Design</span>

Seld Drilling & Self Tapping
High Primary Stability
Apical Design


The apical part has narrow, deep and sharp apical starting teeth that provide quadruple entry, self-tapping and self-drilling to prevent damage to the anatomical structure and provide high stability, as well as easy bone penetration.

HA Hydroxyapatite <br><span>Osteoblastic BCP<br> Surface Morphology</span>

HA Hydroxyapatite
Osteoblastic BCP
Surface Morphology

Perfect HA Osteoblastic homogeneous surface morphology BIC Bone-Implant Contact provides perfect combination with human body and 100% biocompitable BCP Biphasic Calcium Phosphate under favour of Optimum Osseointegration.

Phase Composition: HA/B-TCP BIPHASIC CALCIUM PHOSPHATE

  • Hydroxylapatite..........................................>65%,
  • b-TCP, a-TCP and TTCP phase........<35%
  • Other Ca-P phases.................................<5%
